Ballywillan Presbyterian Church, Portrush

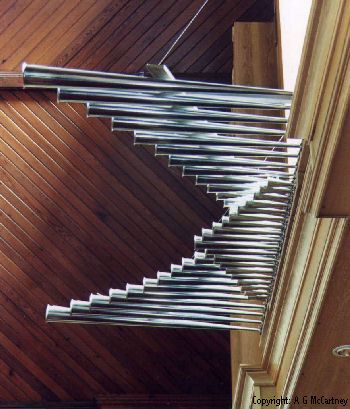

photo of Fanfare Trumpet
Builder:    Wells-Kennedy Partnership
            85-87 Gregg Street
            Lisburn
            Co. Antrim
            Northern Ireland

Console type:  Detached, Drawstop, free standing

Pedals type:   Concave & Radiating

Action: Electric and electropneumatic

Temperament:  Equal
Tuning (a'):  440 Hz

Compass: Manual CC-c 61 notes
                 Pedal CCC-F 30 notes

Wind supply
  Power: Two Watkins and Watson Discus single phase blowers.
  Pressures (inches):  Great: 3 inches
                       Swell: 4 inches
                       Choir 2 3/4 inches
                       Pedal 4 inches

History: Peter Conacher & Co., Huddersfield, 1958
               Extended by Abbey Organs, Belfast 1979
               Rebuilt and enlarged by Wells-Kennedy Partnership 1994-1995

Specification:


Choir

Rohr Flute                              8
Dulciana                                8  Swell
Spitz Principal                         4
Suave Flute                             4
Principal                               2
Larigot                             1 1/3
Cymbel (33.36)                         II
Cremona                                 8
Tremulant

Festival Trumpet                        8  Great
Clarion                                 4  Great
Fanfare Trumpet (En Chamade) (TC)       8


Great

Gemshorn                               16
Open Diapason                           8
Stopped Diapason                        8
Gemshorn                                8  From Gemshorn 16
Principal                               4
Koppel Flute                            4
Nazard                              2 2/3
Doublette                               2
Tierce                              1 3/5
Mixture (19.22.26)                    III
Festival Trumpet                        8
Tremulant
Cymbelstern


Swell

Open Diapason                           8
Gedeckt                                 8
Dulciana                                8
Unda Maris (TC)                         8
Principal                               4  From Open Diapason 8
Stopped Flute                           4  From Gedackt 8
Dolce                                   4  From Dulciana 8
Fifteenth                               2  From Open Diapason 8
Piccolo                                 2  From Gedackt 8
Plein Jeu (22.26.29)                  III
Contra Fagotto                         16
Trumpet                                 8  From Contra Fagotto 16
Oboe                                    8
Clarion                                 4  From Contra Fagotto 16
Tremulant


Pedal

Acoustic Bass                          32  From Bourdon 16
Violone                                16
Subbass                                16
Bourdon                                16  Swell
Octave                                  8
Violincello                             8  From Violone 16
Bass Flute                              8  From Bourdon 16
Fifteenth                               4  From Octave 8
Choral Bass                             4  From Bourdon 16
Rauschquint (19.22)                    II  From Octave 8
Posaune                                16
Fagotto                                16  Swell
Trumpet                                 8  Great
Clarion                                 4  Swell


Couplers:

Choir to Great
Swell to Choir
Swell to Great
Choir to Pedal
Great to Pedal
Swell to Pedal


Accessories:  16 level combination capture system

Source - IMcC 8/1996
