| Great | Swell (Enclosed) | Pedal | |||
|---|---|---|---|---|---|
| Double Diapason | 16 | Double Diapason | 16 | Double Open Diapason | 32 B |
| Bourdon | 16 | Open Diapason | 8 | Open Diapason II | 16 B |
| Open Diapason I | 8 | Stopt Diapason | 8 | Open Diapason I | 16 |
| Open Diapason II | 8 | Salicional | 8 | Violone | 16 |
| Stopt Diapason | 8 | Voix Celestes bot A# | 8 | Bourdon | 16 |
| Gamba | 8 | Octave | 4 | Octave | 8 |
| Quint | 5 1/3 | Suabe Flute | 4 | Bass Flute | 8 |
| Principal | 4 | Fifteenth | 2 | Fifteenth | 4 |
| Conical Flute | 4 | Full Mixture 19.22.26.29 | IV | Sesquialtera 12.17 | II |
| Twelfth | 2 2/3 | Double Trumpet | 16 | Mixture 19.22.26.29 | IV |
| Fifteenth | 2 | Trumpet | 8 | Contra Bombarde | 32 A |
| Full Mixture 15.19.22.26 | IV | Cornopean | 8 | Trombone | 16 |
| Sharp Mixture 22.26.29 | III | Oboe | 8 | Contra Fagotto | 16 |
| Double Trumpet | 16 | Vox Humana | 8 | Clarion | 8 |
| Trumpet | 8 | Clarion | 4 | ||
| Posaune | 8 | Gt & Ped Combs Coupled | |||
| Clarion | 4 | Tremulant | Choir Octave to Pedal | ||
| Solo to Swell | Swell Octave to Pedal | ||||
| Choir to Great | Choir to Pedal | ||||
| Swell to Great | Great to Pedal | ||||
| Solo to Great | Swell to Pedal | ||||
| Solo to Pedal | |||||
| Choir | Solo | ||
|---|---|---|---|
| Stopt Diapason | 8 | Harmonic Flute | 8 |
| Principal | 4 | Harmonic Flute | 4 |
| Rohr Flute | 4 | Harmonic Piccolo | 2 |
| Nazard | 2 2/3 | Corno di Bassetto | 16 |
| Flautina | 2 | Clarinet | 8 |
| Tierce | 1 3/5 | Grand Cornet 1.8.12.15.17 T.F. | V |
| Larigot | 1 1/3 | Fourniture 12.15.19.22.26 | V-VII |
| Dulciana Mixture 19.22 | II | Cymbal 29.33.36.40 | IV |
| Cymbal 22.26.29.33.36 | V | Contra Tuba | 16 A |
| Bassoon | 16 | Tuba | 8 |
| Cremona | 8 | Tuba Clarion | 4 |
| Fanfare Trumpet | 8 (So) | Fanfare Trumpet | 8 |
| Tremulant | Tremulant | ||
| Swell to Choir | |||
| Solo to Choir | |||

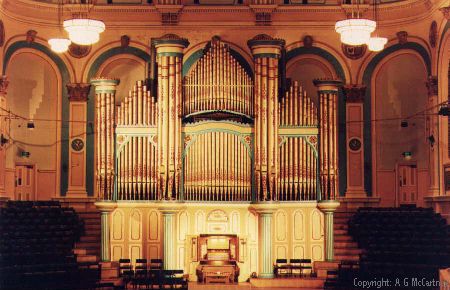

Builder: William Hill, London, 1861
Rebuilt: Thomas Hill, London, 1903
Electrified: Evans & Barr Ltd, Belfast, 1930 & 1956
Rebuilt: N P Mander, London, 1976-8
Fanfare Trumpet Added: N P Mander, London, 1982
General Sequencing System Installed: P G Prosser & Son, Dunmurry, 1988
Overhauled: P G Prosser & Son, Dunmurry, 1996
Source - AGMcC 11/1996
