Pipe Organ Preservation Co. (of Ireland)

Preserving and rehousing redundant pipe organs from the island of Ireland

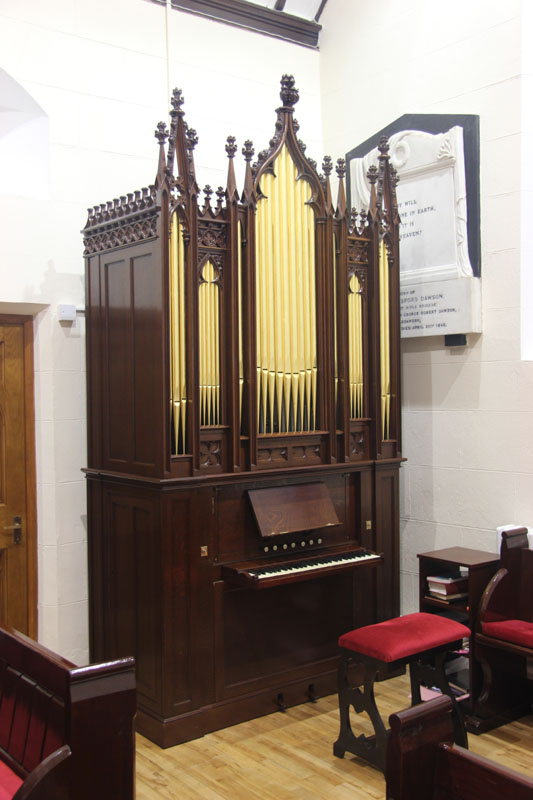

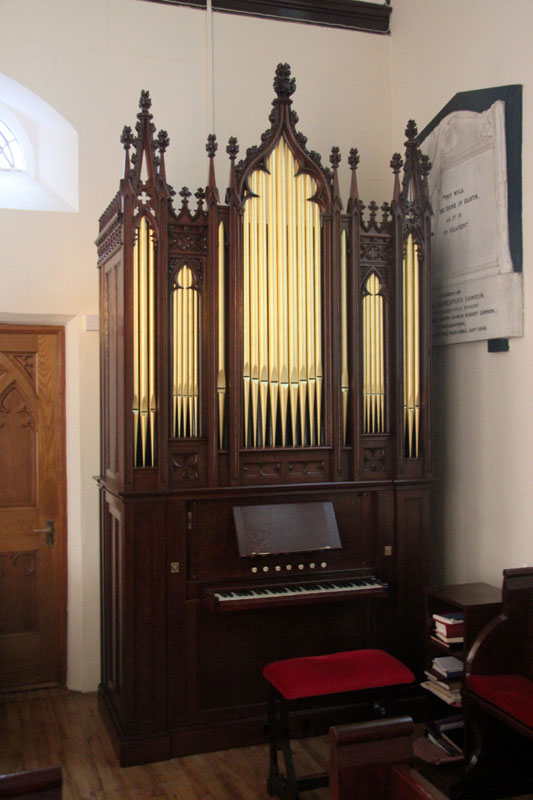

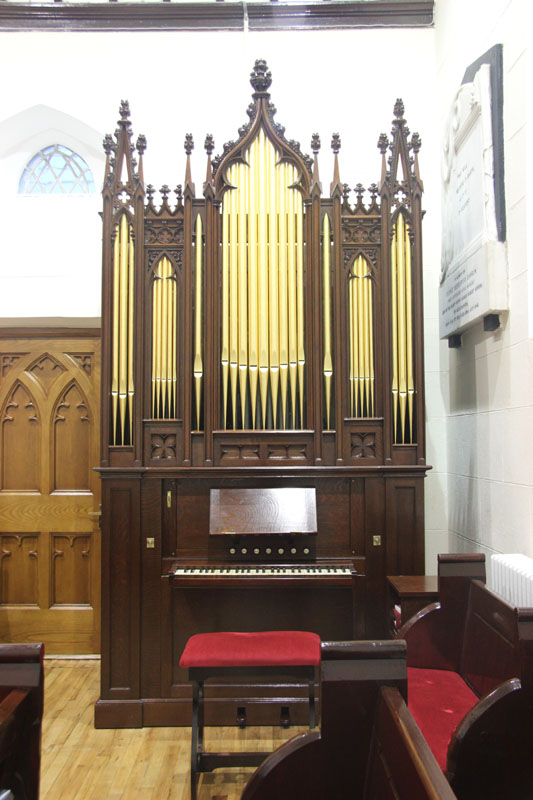

Christ Church, Castledawson, Co. Londonderry

This chamber organ never appeared to have had a thorough restoration and after nearly 200 years it was badly needing attention. We approached the project from a historic restoration point of view and to conserve all that existed. There had been minor alterations over the years which were deemed beneficial and part of the history of the instrument so these were retained with the exception of the altered compass which was reversed.

Low GGG and AAA pipes had been cut down to BBB & CC# - these were extended and restored to the original intention.
The keyboard which had been fixed in the open position was made retractable again.
The German Flute 4' had been added on a clamp behind the case pipes and the case extended back probably by Telford of Dublin. At some stage (probably 1963) the German Flute was replaced by Dulciana pipes. These were retained as a useful accompaniment stop rather than trying to recreate the missing Flute or scrap the added stop altogether.
The case woodwork was in poor condition and the polish was dead in too many areas to warrant conservation so it was stripped back and French polished from scratch together with replacement of many missing mouldings.
The front pipes had five or more layers of gold paint on top of the original gold leaf. The pipes were taken back to the original gold and completely redone in new gold leaf.
An electric blower which originally sat beside the organ was moved to the vestry behind and a ducted through the wall. Blowing was originally by hand lever and foot pedal but these had long since disappeared.

Specification

Manual
German Flute8from tenor F
Stop Diapason Bass8to tenor E
Open Diapason8from tenor F
Stop Diapason Treble8from tenor F
Principal4
Twelfth2 2/3from tenor F
Fifteenth2

Compass GGG-g (57 Notes)

2 composition pedals
oak case and dummy pipes with gold leaf

Builder : unknown c1820
Installed : A E Davies Northampton 1963
Restored : Pipe Organ Preservation Co Belfast 2011
