Early artist's impression of the refurbished hall

Preservation · 1994–2005

Christ Church, College Square North, Belfast

The first organ we saved: dismantled from a closed church in 1994–95, held in store, and rehoused in the Great Hall at Queen's University Belfast. The Pipe Organ Preservation Co. carried out the rescue, storage and rehousing; the final restoration to the original 1857 specification was completed by William Drake in 2005.

Organisation
Christ Church, College Square North / Queen's University Great Hall
Location
Belfast, Co. Antrim
Year
1994–2005
Type of work
Rescue, preservation and rehousing

The contract

This Church of Ireland church closed for worship in 1993. The organ by that stage was virtually derelict and the floor of its chamber had sunk about 18 inches in one corner. A fire in the church, several nearby terrorist explosions together with 100 years since any major rebuilding work all attributed to the poor condition of the organ. Over a period of several months in 1994-5, the organ was voluntarily dismantled by Alistair McCartney with help from Philip Prosser and David Drinkell. Concern was raised over some vandalism and a small fire in the church. This led to a wholesale effort under the direction of Philip Prosser to dismantle the remainder of the instrument and remove it all to store. About 2 months later the church was completely gutted by fire leaving only a shell. In December 1998, after the storage arrangements had expired, the Pipe Organ Preservation Co. took over the organ and removed it to a new store on its premises.

Queen's University Belfast was at this time planning the refurbishment of the Great Hall in the Lanyon Building under the direction of the architect Dawson Stelfox. The hall had previously held an organ by William Andrews of Bradford dating from 1903 which was moved and rebuilt in the new Whitla Hall in 1949. During the work, it was intended to install the gallery intended in Lanyon's plans in the 1840s but never executed and it was at this point Professor Bruce Campbell made enquiries as to the whereabouts of the organ from Christ Church. Lanyon himself attended Christ Church and the connection was very appropriate. Various opinions and advice were sought and the university agreed to purchase the organ and move it to a store in 2000. The hall refurbishment was completed in spring 2001 and the restoration of the organ to its original 1857 two manual specification was completed by William Drake in 2005.

Chronology

  1. 1993Christ Church, College Square North closed for worship.
  2. 1994–95The organ voluntarily dismantled over several months by Alistair McCartney with Philip Prosser and David Drinkell.
  3. 1995The remainder removed into store under the direction of Philip Prosser; the church was subsequently gutted by fire.
  4. December 1998The Pipe Organ Preservation Co. took over the organ and removed it to a new store on its own premises.
  5. 2000Queen's University Belfast agreed to purchase the instrument and it was moved to storage.
  6. Spring 2001Refurbishment of the Great Hall completed.
  7. 2005Restoration to the original 1857 two-manual specification completed by William Drake.

The work, stage by stage

01

Photographic record

4 photographs

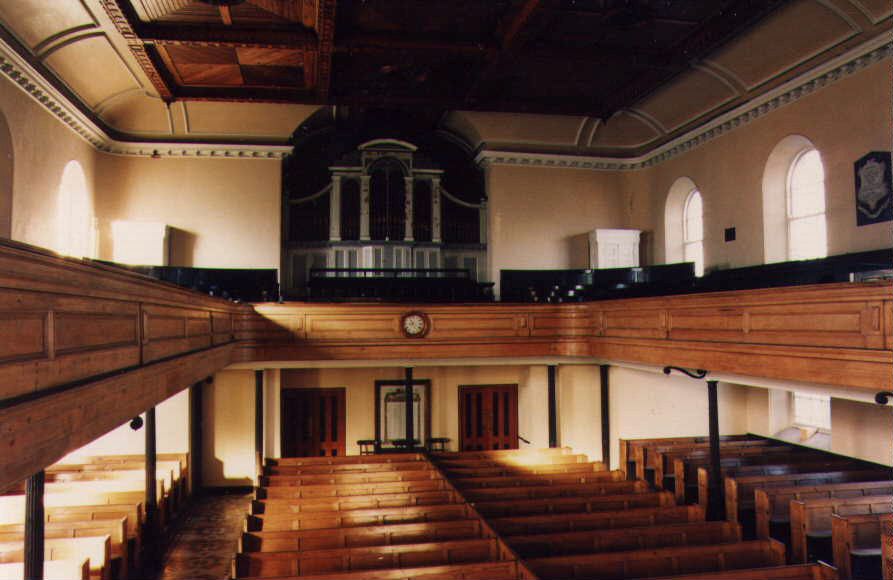

Christ Church, College Square North, Belfast

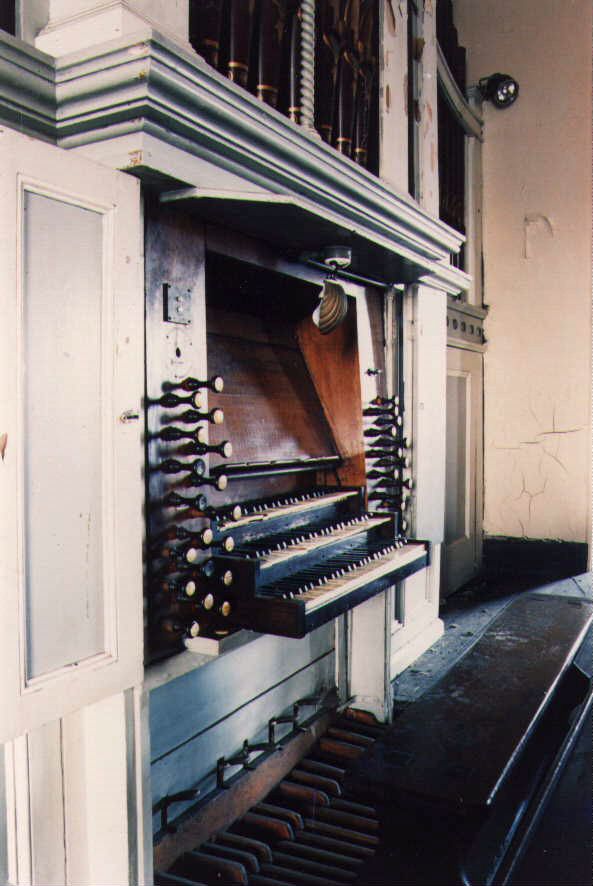

Christ Church, College Square North, Belfast

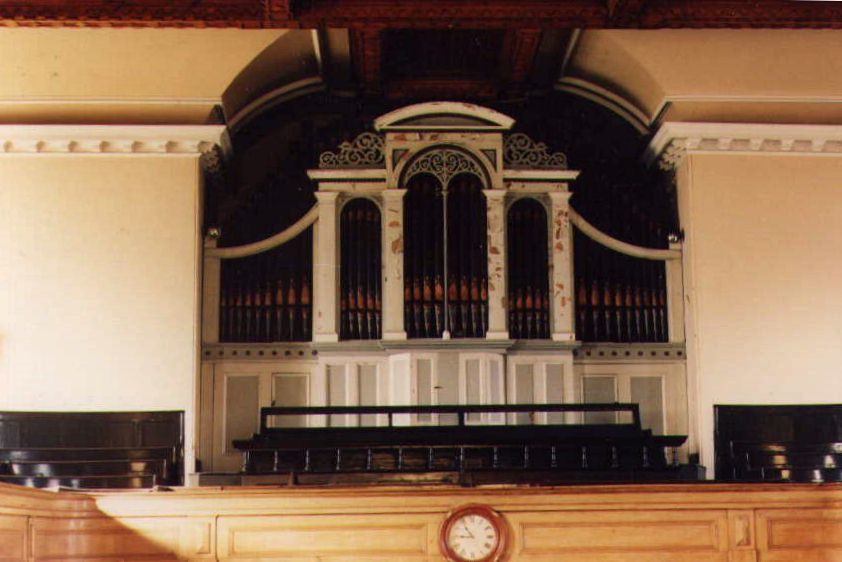

Christ Church, College Square North, Belfast
Early artist's impression of the refurbished hall

Specification

Great

Double DiapasonTenor C, Walker, replaced Dulciana (moved to Choir)
16
Open DiapasonHarrison, added on separate chest
8
Open Diapason
8
ClarabellaTenor C
8
Stopped Diapason Bass
8
Principal
4
Wald FluteTenor C
4
Fifteenth
2
Sesquialtra19.22.26.29, top 2 ranks missing
IV
Trumpet
8

Specification

Double Diapason
16
Open Diapason
8
Stopped Diapason
8
KeraulophonWalker, replaced Mixture
8
Principal
4
FifteenthWalker, on clamp
2
CornopeanWalker, on clamp
8
Oboe
8

Choir

Viol di GambaTenor C, Harrison
8
Stopped Diapason TrebleTenor C, Walker
8
Stopped Diapason Bass1-12, Walker
8
DulcianaTenor C, from Great
8
FluteWalker
4
PiccoloWalker
2
ClarionetTenor C, Walker
8

Pedal

Open Diapason
16
BourdonHarrison
16

Great

Open Diapason
8
Stopped Diapason Bass
8
ClarabellaTenor C
8
DulcianaTenor C
8
Principal
4
Wald FluteTenor C
4
Fifteenth
2
Sesquialtra19.22.26.29, top 2 ranks new
IV
Trumpetrescaled & deslotted
8

Specification

Double Diapason
16
Open Diapason
8
Stopped Diapason
8
Principal
4
Mixturenew
III-II
Oboe
8

Pedal

Open Diapason
16

Swell: (Enclosed) Tenor C

Couplers: Swell to Great

Swell to Choir

Swell to Pedals

Swell Octave

Choir to Pedals

Great to Pedals

Compass: Pedal CCC-F (30 Notes)

Choir CC-g (56 Notes)

Great CC-g (56 Notes)

Swell C-g (44 Notes) 1-12 coupled to Choir

5 composition pedals

Hitch-down Swell Pedal

Attached drawstop console

Mechanical action to manuals & drawstops

Swell: (Enclosed) Tenor C

Couplers: Swell to Great

Great to Pedal

Compass: Pedal CCC-F (30 Notes)

Great CC-g (56 Notes)

Swell C-g (44 Notes)

3 composition pedals

Hitch-down Swell Pedal

Attached drawstop console

Mechanical action throughout
