Installation · 2008–09
North Down House Organs
Two house organs installed in North Down residences for two organists: a 1979 two-manual and pedal instrument by S J Harris, and a 1955 single-manual and pedal organ by Peter of Germany.
- Organisation
- Private residences
- Location
- North Down, Co. Down
- Year
- 2008–09
- Type of work
- Two residence organs installed for organists
The contract
Direct electric action throughout
Blowing by British Organ Blowing Co., Ltd. Derby, enclosed in silencing cabinet. Regulated wind at approx. 2 1/2” w.g.
Ivory manual keys & drawstop knobs
Drawstops arranged “in line” over upper manual
The instrument contains two basic ranks, one of wood (Stopped Diapason) and another of metal (tapered Gemshorn), all unenclosed.
Gemshorn rank new throughout in Spotted Metal of approximately 50/50 mix. Stopped Diapason rank of old work, selected for characteristic tone
Rank ‘A’ GEMSHORN, 73 pipes, Tenor C to top note of 15th
Rank ‘B’ STOPPED DIAPASON of wood, 73 pipes, CC to top note of 4ft

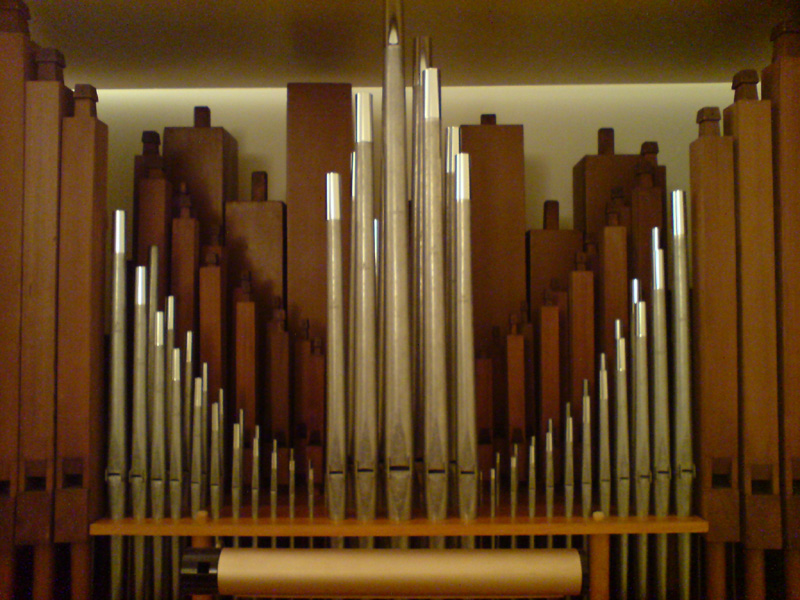

Pipework arranged in functional display, casework painted finish (eggshell), hardwood to console and edge mouldings.
The work, stage by stage

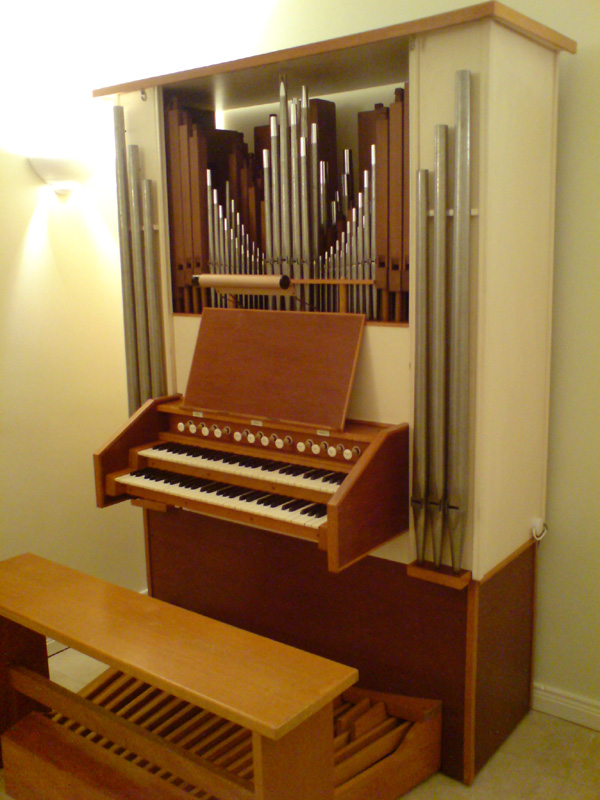

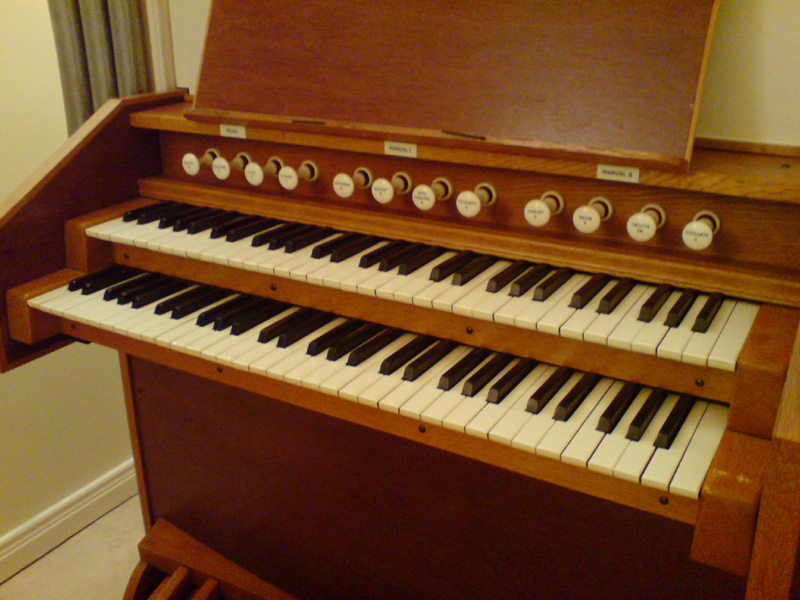

Two Manual and Pedal Residence Organ by by S J Harris 1979, installed 2008
4 photographs

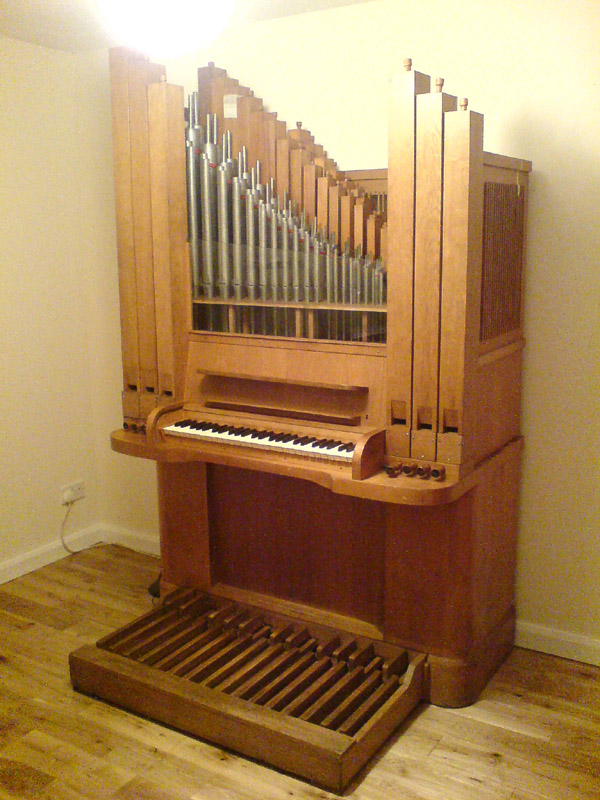

Manual and Pedal Residence Organ by by Peter of Germany 1955, installed 2009
1 photograph
Specification
Manual 1
- Stopped DiapasonB
- 8
- GemshornA
- 8
- Spitz PrincipalA
- 4
- FifteenthA
- 2
Manual 1
- Stopped DiapasonB
- 8
- Nason FluteB
- 4
- TwelfthA
- 2 2/3
- FifteenthA
- 2
Pedal
- Flute BassB
- 8
- GemshornA
- 4
- FluteB
- 4
- OctavinA
- 2
Great
- Gedackt
- 8
- Rohrflöte
- 4
- Prinzipal
- 2
- Terzcymbaleprepared for
- II
Compass: Manual CC-c (61 Notes)
Pedals CCC-F (30 Notes)
Dimensions:: Height 86" (2190mm)
Width 57"(1450mm)
Depth to back edge of pedalboard 52" (1320mm)
Compass: Manual CC-f (54 Notes)
Pedals CCC-D (27 Notes)
Dimensions:: Height 2250mm
Width 1360mm
Depth 1300mm
Drawstops on eiither side of keyboard to draw bass & treble seperately
Pedal permanently coupled
Mechanical action throughout
